Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3650AS is a high-capacity 36V 50Ah battery designed to support demanding high-voltage applications. It provides a powerful 1800W output and is housed in a rugged ABS-sealed case, delivering long-lasting, maintenance-free performance with over 3,000 charge cycles and up to 20 years of service life.
Key Features
1. High Output and Long Lifespan
Continuous Discharge Current: 50A
Peak Discharge Current: 100A (5 sec)
Output Power: 1800 Watts
Over 3,000 cycles and 20-year design life
2. Built-in PCM for Safety and Stability
Internal cell balancing and integrated charge protection
Prevents overcurrent, undervoltage, overvoltage, and short circuits
EMI/RFI-free for quiet, interference-free performance
3. Durable and Compact Construction
Case: ABS Sealed
Dimensions: 19.6 in. × 6.8 in. × 9.6 in. (496 mm × 172 mm × 242 mm)
Weight: 41.9 lbs. (19 kg)

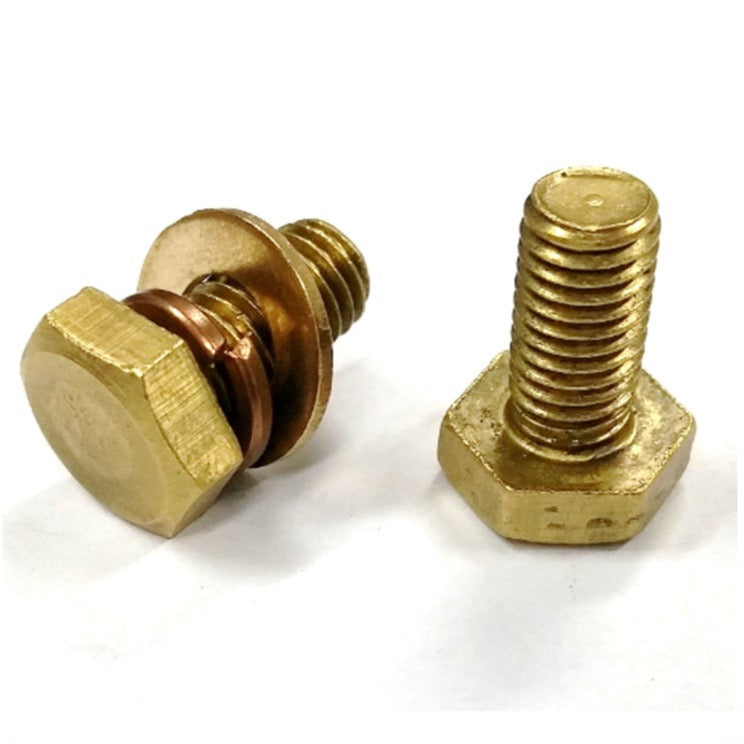

Charge/Discharge: Screw Terminal
4. Charger Compatibility
Battery Specifications – BLF-3650AS
Application Highlights
Marine trolling motors
E-bikes, e-scooters, and electric vehicles
Robotics, field instruments, and scientific systems
Installation Note
36V batteries cannot be placed in series with other 36V batteries. Parallel configuration is allowed with up to 4 batteries of the same model, with serial numbers starting with “20” or higher. Ensure all terminal connections are securely tightened before use.
