ProLine™ 3000W Modified Sine Wave Power Inverter - DC 12V to AC 110V for RVs, Camping & Emergency Power Backup

Description

Well suited to provide clean and silent power to your home. 3000 Watts of Power!

ProLine 3,000 Watt Inverter
As a venerable favorite among off-grid users, Wagan Tech’s ProLine series of power inverters have received a considerable makeover. Starting from the ground up, the new 3,000 watt inverter received a new SMT circuit board, a glossy exterior coating on the smaller casing, and a massive weight reduction. The new Wagan Tech Pro Line Inverters; proving that the best can get better!

Upgraded Features
The new SMT (Surface Mount Technology) circuit boards offer greater reliability, better efficiency, and fewer stray RF emissions over the older PCB (Printed Circuit Boards) and through-hole boards. From there the case volume shrunk, and the overall weight was reduced; this makes for one efficient, compact, and lightweight 3,000 watt inverter.

Component Details
Under the shiny new exterior, you’ll find the aforementioned circuit boards and a powerful cooling fan. On the front of the ProLine 3,000 Watt Inverter you will find the manually operated power switch (On/Off) as well as the jack for the remote power switch (included).

Three conveniently stacked 120V AC outlets capable of providing 1500 watts each are well spaced on the right side of the inverter. Just left of the AC outlets, you will find the LED Over-Load and Over-Temperature warning lights and the Voltage and Amperage level indicators. With the stout AC terminal block just below the Voltage/Amperage Level indicators, you can be certain that your investment is well protected.

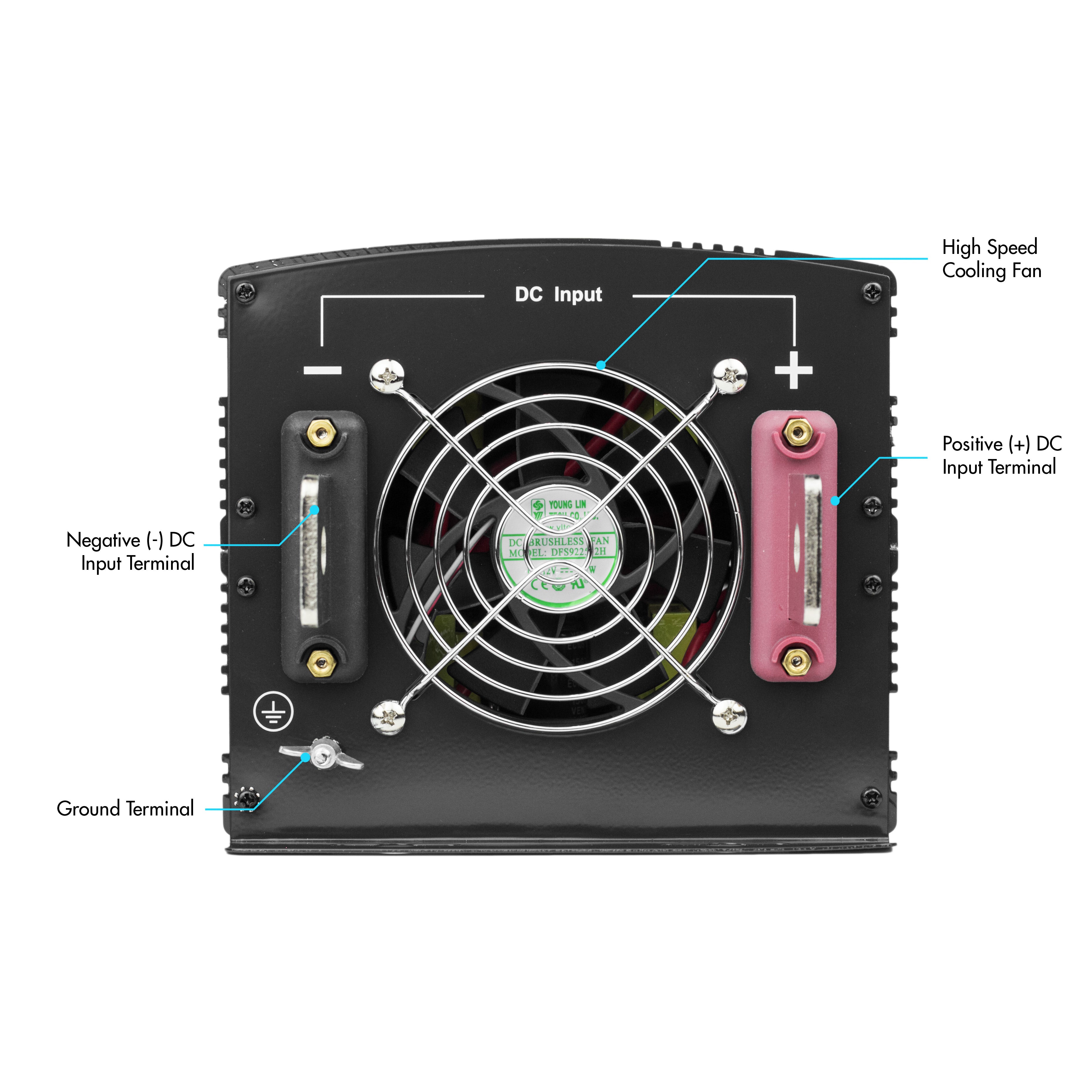

Rear Component Details
On the backside of the ProLine 3,000 Watt Inverter is the massive cooling fan, the Heavy Duty Solid Mount Positive (Red) Terminal, the Heavy Duty Solid Mount Negative (Black) Terminal, and the Ground-Neutral Bond stud with wing-nut.

Both of the Terminals are now Heavy Duty Sold Mounts and come directly out of the case to make connections easier and to avoid the inevitable 90ᵒ bend that the cables make on traditional inverters; causing undue stress and making connections harder. The massive cooling fan is utilized to help keep the inverter cool and operating efficiently.

Performance
Wagan Tech builds our inverters with high peak surges that allow up to 3x the continuous rating to support high surging appliances such as tools, microwaves, air conditioners and refrigerators. Wagan Tech uses top quality components and reliable MOSFET transistors – the key factor in reliable inverter manufacturing.

Quick List of Features

• New Conformal Coated circuit board
• Smaller Size/Less Volume
• Weight Reduction
• Redesigned Shell
• Heavy Duty Solid Mount Terminals
• Sharp Gloss Black Exterior
• LED Displays
• AC Outlets: 3 @ 1500 watts each
• AC Terminal Block
• Remote Switch (included)

Don't forget the !

Is This the Right Inverter for You?
If you are having trouble deciding which inverter is right for your needs or are having trouble understanding the confusing inverter nomenclature, check out our to help get a better grasp on what it is that you are looking for!

WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Specs

• Power: 3,000W
• Surge power: 6,000W
• AC output: 115-125V
• Frequency: 60Hz
• Socket type: U.S. standard grounded (3x)
• Maximum efficiency: 90%
• Output waveform: Modified sine wave
• Overload protection: Automatic shutdown
• Overheating protection: Thermal cooling fan with automatic shutdown
• DC input: 12V
• Input range: 10V to 15V
• Short circuit and reverse polarity protection: Internal fuse (non-replaceable)
• Low battery alarm: 10.5V ± 0.5V
• Low battery automatic shutdown: 9.5V ± 0.5V*
• High Voltage shutdown: +15V
• Automatic Restart: Yes
• True Ground: Yes
• Conformal Coated Board
• Dimensions: 13.5 x 6 x 6.5 (inches)
• Certifications: CE, RoHS
• Remote On/Off Switch: Included
• Remote On/Off Switch Cord Length: 16 Feet
• No load current draw: < 1.0A
• Net Weight: 8.8 lbs.
