Description

The combination of Explore Scientific's 0.8x focal reducer and FCD-100 80 mm Air-Spaced Triplet Refractor creates a 5-element wide-field astrophotography system ready to reveal wonders of the night sky. Because the focal reducer can be replaced with a diagonal, the astrograph can transform into a visual instrument that offers stunning visual views of the night sky. The package comes with ES-iEXOS-100-02 goto tracker mount and 2 extra counterweights.

The 0.8x focal reducer turns this f/6 telescope (focal length 480 mm) into an f/4.8 telescope (focal length 384 mm), allowing users a field wide enough to photograph the entirety of the Andromeda Galaxy, the Cygnus Loop, or the Heart Nebula.

The 80 mm aperture allows more light to collect onto your camera sensor than telescopes with smaller apertures. This telescope gathers:

• 1.3 times more light than a 70 mm telescope
• 1.8 times more than a 60 mm telescope
• 2.6 timers more than a 50 mm telescope

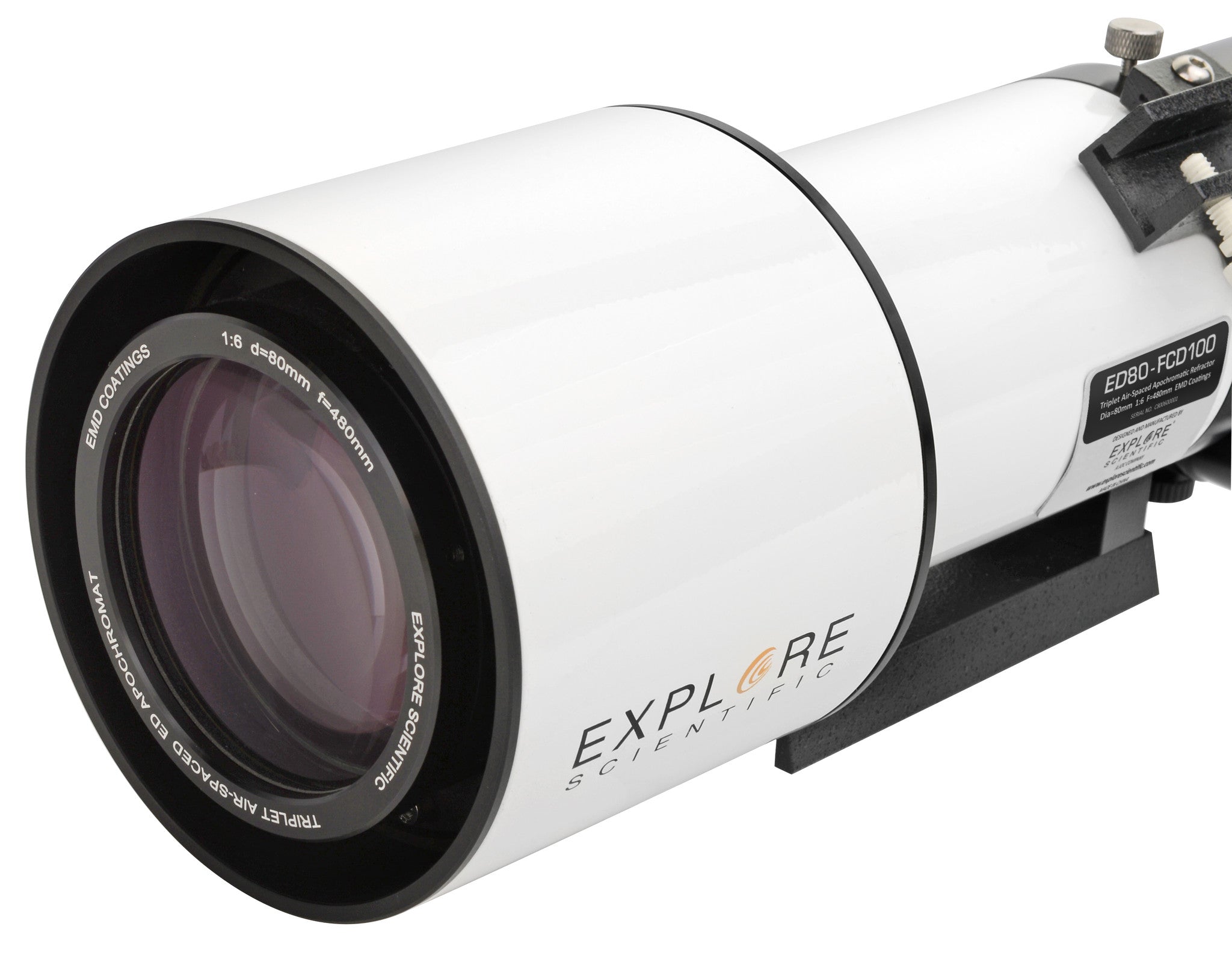

In addition, the telescope offers true diffraction-limited optics with genuine HOYA FCD100 extra-low dispersion (ED) glass, that is very similar in characteristics to Ohara FPL-53. Through technological innovation, we have successfully launched the mass production of high-performance optical glass at the apex of the FCD family. Combining it with optical glass of high refractive index allows us to achieve unprecedented advanced chromatic-aberration correction. Hoya FCD100 is considered the best glass ever produced by Hoya.

While the Essential Series 80 mm telescope with FCD1 glass is a fine instrument, if you want to dive deep into astrophotography, the FCD100 glass offers better transmission of red light (where many of the great nebulae shine) and better contrast. That means your photographs are going to pop.

Included in the Box:

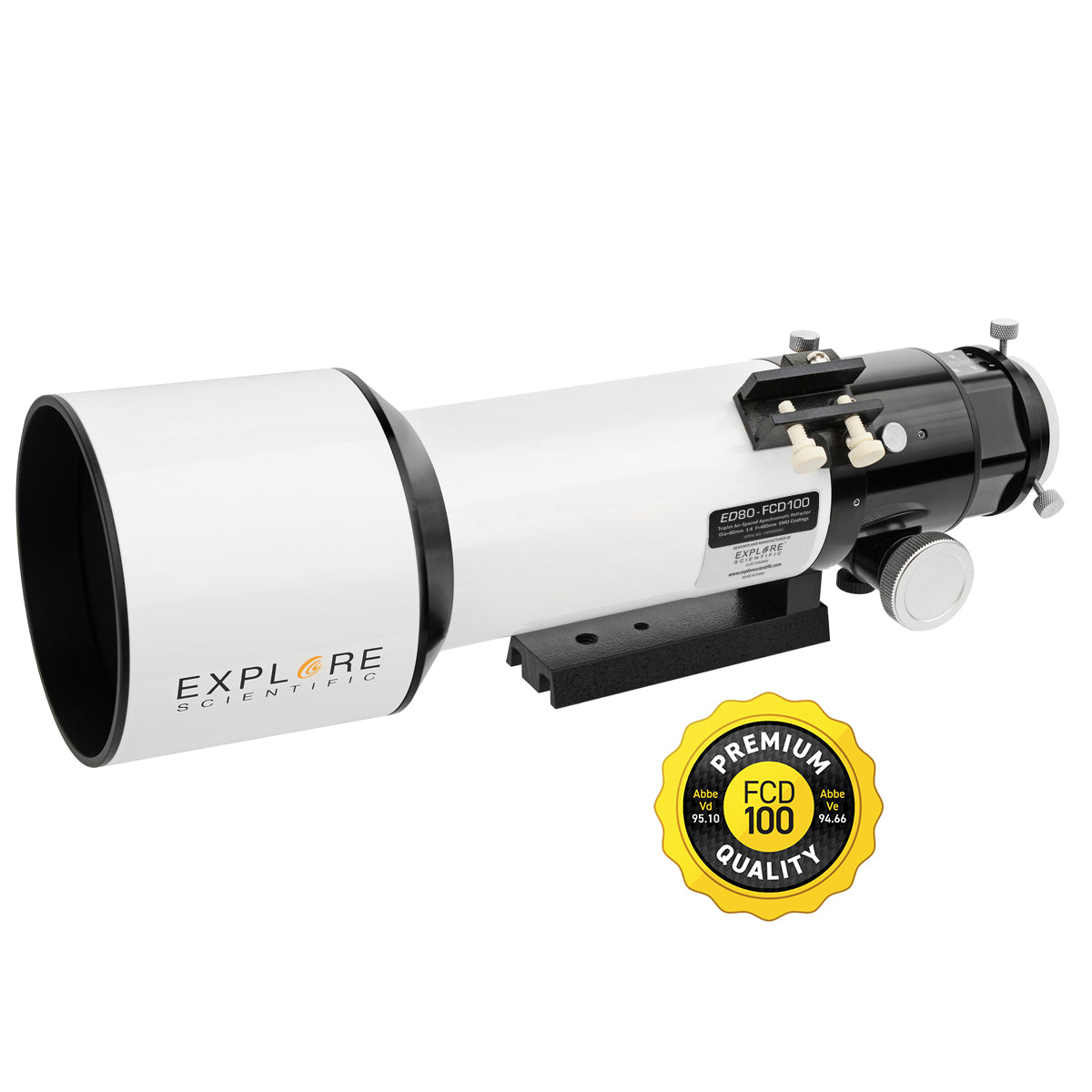

• FCD-100 ED 80 mm f/6 air-spaced refractor telescope
• 0.8x Focal Reducer with ends caps and adapter with 42 mm T2 ring thread
• iEXOS-100-2 PMC-Eight Equatorial Tracker System with WiFi and Bluetooth®
• 99% reflective 2-inch diagonal
• Explore Scientific 2.5-inch hexagonal focuser rugged enough to load 10 pounds onto the focuser
• 2 focuser extension tubes
• installed on scope. (Finder scope not included.)
• Built-in dew shield
• Dust cover/lens cap

Explore Scientific 0.8x Focal Reducer

The NEW Explore Scientific 0.8x Focal Reducer lets astrophotographers explore the wonders of wide-field astrophotography in an easy-to-use package.

The 0.8x Focal Reducer works with the following Explore Scientific telescopes:

The 2-element 0.8x focal reducer turns the 480-mm-focal-length telescopes into devices with a focal length of 384 mm. This changes the telescopes from an f/ratio of f/6 to a much faster f/4.8.

The device turns the 102 mm telescopes, with a focal length of 714 mm, into telescopes with a focal length of 571 mm: From f/7 to f/5.6.

The faster f/ratio, coupled with more light-gathering aperture, allows more light to fall onto the camera sensor. For instance, to capture the same amount of light as a 100-second exposure with the Explore Scientific 80 mm takes 256 seconds on a  50 mm, 178 seconds on a 60 mm, and 131 sec on 70 mm – assuming the same f/ratio. This means that the Explore Scientific 80mm telescope with the 0.8x Focal Reducer can capture far more detail faster than the competition.

The focal reducer, which has 55 mm (+/- 2 mm) of back spacing, is threaded to accept a standard 42 mm T-ring, making attaching a camera easy.

iEXOS-100-2 PMC-Eight Equatorial Tracker System with WiFi and Bluetooth®

The iEXOS-100 PMC-Eight™ Equatorial Tracker System is a complete astronomical computerized Wifi or Wired GOTO Equatorial Tracker with integrated PMC-Eight™ electronics suitable for attaching Small Telescopes or DSLR Cameras attached to the Explore Scientific DSLR Camera Dovetail Assembly.

Use with the free ExploreStars App for Tablets (Windows, Android, Amazon and Apple), or with the free ASCOM Standards Compliant PMC-Eight™ ASCOM driver and the ASCOM POTH Client from Explore Scientific (either wired or wireless) to work with virtually any sky software that supports ASCOM. Tablet or computer must be purchased separately.

The iEXOS-100 utilizes a proven German equatorial mount design and Explore Scientific’s revolutionary PMC-Eight™ Precision Motion Control system to flawlessly navigate the night sky and track objects as they journey across it. This combination provides superior observing and imaging performance without a prohibitive price tag.

GOTO systems play an important role in the world of amateur astronomy because they ensure users spend less time searching for particular objects and more time observing and imaging. The PMC-Eight™ with its versatile connections supported with free to download apps for Windows computers or Android and iOS tablets only (tablets must have a screen of at least 7 inches), or through the free to download ASCOM PMC-Eight™ driver and POTH Client to connect to your favorite ASCOM Compliant Astronomical Software, can allow you to control the telescope from a few feet away or by communicating computer-to-computer with an Internet connection from virtually anywhere in the world.

One of the standout features of the iEXOS-100 system is its German equatorial design. When it comes to tracking the stars with a telescope, there is nothing that compares to a German Equatorial Mount (GEM) because it will precisely follow objects as they rise in the east and set in the west. For observers, a GEM makes it easy to keep your celestial target in your eyepiece. For imagers, it helps you avoid common astrophotography pitfalls like field rotation.

Before you can track an object, you need to find it, and that objective can be daunting when you’re faced with a vast expanse of inky black sky or a bright city sky. The iEXOS-100 puts a powerful GOTO system in your arsenal of astronomical tools that takes the frustration out of navigating the night sky. This integrated version of Explore Scientific’s PMC-Eight™ system transcends the industry standard single processor by utilizing an 8-core microcontroller with eight CPUs that operate independently of one another to focus on defined functions. This delegation of tasks among the processors results in a system that offers superior responsiveness, efficiency, reliability and astoundingly fast timing intervals for smooth image acquisition and accurate tracking.

Although it is internally complex, the GOTO system can be easily operated from your own Apple, Android or Windows tablet using the ExploreStars app, which has an intuitive nature that makes it simple and quick to align your telescope, navigate the stars and learn specifics about tens of thousands of celestial objects. This dynamic app is fueled by a database that is routinely updated to ensure it remains a relevant resource.

Our commitment to creating a streamlined GOTO mount is obvious in other design choices. The iEXOS-100 has smooth locking clutches that will let you quickly reposition your telescope from one side to the other and an altitude knob for smooth height adjustments. The mount base includes a small polar alignment tunnel that allows users to roughly align their observing setup with Polaris. It also has a simple bubble level that comes in handy when stabilizing your tripod. Other features include a bracket for holding the battery pack, which powers the PMC-Eight™ system through 8 C batteries (not included); two 1 kg counterweights for balancing (telescopes and accessories that weigh more than 6 lbs required additional ); and glow-in-the-dark markers on certain points of the mount and tripod so you can stay oriented with your setup at night. The mount is designed to hold up to 19 lbs (scope, accessories, and counterweights added together).

The mount weighs 9.45 pounds (4.29 kg), while the lightweight Travel Tripod and accessory tray weighs 5.5 pounds (2.5 kg). The Travel Tripod, when collapsed is 27.25 inches (69.21 cm) tall.

Recommended Products:

• Medium-Duty Field Tripod
• Heavy-Duty Field Tripod
• USB Power Bank
• 116-2P-06, Timing Belt

Resources:

• PMC-Eight, the Vision and Technology
• ExploreStars App and ASCOM Downloads
• PMC-Eight Knowledgebase
• The OpenGOTO Community Home Page
• PMC-Eight and OpenGOTO Community Groups.io Forum

Specs

iEXOS-100-2 PMC-Eight Equatorial Tracker System with WiFi and Bluetooth®

Warranty

Limited Warranty is one year, which converts to the Explore STAR Transferable Extended Life of the Product Warranty when product is registered within 60 days of purchase. Click Here to register.

Video

Software

Download ExploreStars Software Here

Find inserts to your PMC-Eight Questions on our Knowledge Base

Download the Instruction Manual

CA Residents: Prop 65 WARNING(S)
