Product Overview

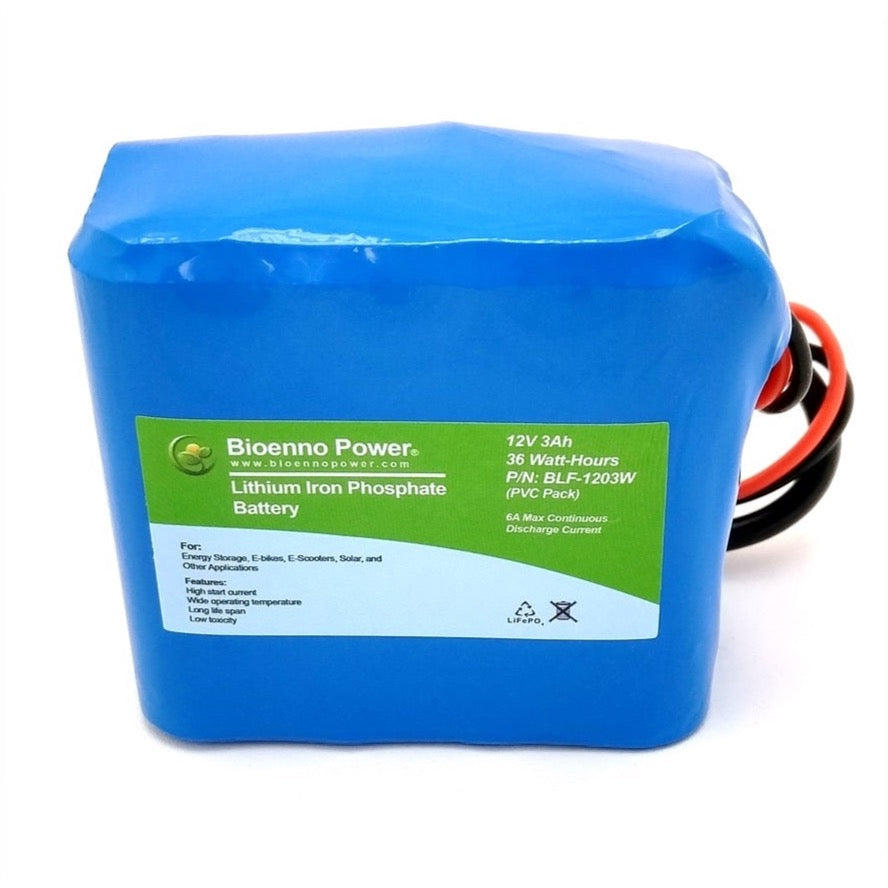

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1203W is a compact 12V 3Ah battery engineered for portable electronics and low-power devices. Featuring Bioenno Power’s smallest form factor, this ultra-lightweight battery delivers stable, interference-free power in space-constrained environments.
Key Features of the 12V 3Ah Lithium Battery
1. Compact LiFePO4 Power with Clean Output
Quiet Operation: No EMI/RFI, making it ideal for sensitive electronics.
Integrated PCM: Provides full internal balancing and protection from overvoltage, undervoltage, short-circuiting, and overcurrent events.
2. Reliable Discharge and Output
Max Continuous Discharge Current: 6A
Peak Pulse Current: 12A (2 seconds)
Max Output Power: 72 Watts (12V × 6A)
Note: Ensure the load stays below these limits for optimal performance.
3. Miniature Size, Maximum Efficiency
Dimensions: 3.0 in. × 1.6 in. × 2.8 in. (75 mm × 39 mm × 72 mm)
Weight: 0.8 lbs. (0.4 kg)
Connector: Anderson Powerpole (PP30) for discharge, DC Barrel Plug for charging
4. Charger Compatibility
Battery Specifications – BLF-1203W
Voltage: 12V
Capacity: 3Ah
Enclosure: PVC Pack
Max Output Power: 72 Watts
Discharge Connector: Anderson Powerpole (PP30)
Charge Connector: DC Barrel Plug
Includes PCM: Yes – integrated with balancing and protective functions
Benefits
Ultra-Compact: Smallest LiFePO4 battery form factor offered by Bioenno Power.
Safe and Efficient: Full built-in safety circuitry for reliable use.
Noise-Free Power: No electromagnetic or radio-frequency interference.
Ideal Applications
Policies
Shipping: Standard delivery options available
Returns/Exchange: 30-day policy
Warranty: 2-year limited warranty
