Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3610A is a compact, high-performance 36V 10Ah battery engineered for higher-voltage systems requiring clean, stable energy. With 360W of output power and a space-saving PVC design, this battery is ideal for e-bikes, electric scooters, robotics, and other 36V platforms. Built-in PCM protection ensures safety, long life, and EMI/RFI-free operation.
Key Features
1. Reliable High-Voltage Output
Max Continuous Discharge: 10A
Peak Discharge Current: 20A (5 seconds)
Max Continuous Power: 360 Watts
Ideal for 36V motor-driven systems and mobility solutions
2. Integrated PCM Protection
Protects against overcurrent, overvoltage, undervoltage, and short circuits
Internal cell balancing and built-in charge control ensure optimal battery health
3. Lightweight, Compact Form Factor
Case Type: PVC Pack
Dimensions: 8.3 in. × 5.2 in. × 3.1 in. (211 mm × 131 mm × 78 mm)
Weight: 7.6 lbs. (3.5 kg)

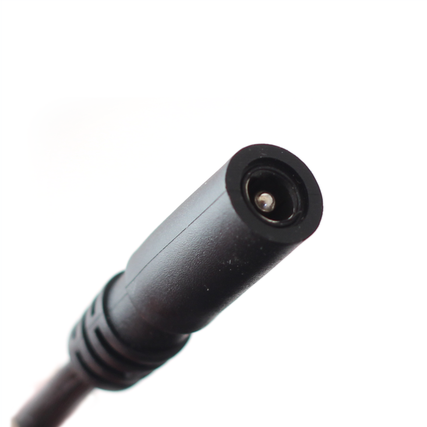

Charge Connector: DC Barrel Plug
Discharge Connector: Anderson Powerpole (PP45)
4. Compatible Charger Specifications
Model:
Input: 110VAC / 220VAC
Output: 43.8VDC at 2A
Connector: DC Plug
Battery Specifications – BLF-3610A
Benefits
Perfect for high-efficiency 36V electronics
Maintenance-free lithium chemistry
Long-lasting with over 2000 charge cycles
No EMI or RFI — safe for sensitive systems
Ideal Applications
E-bikes and 36V electric scooters
Robotics and autonomous platforms
Light industrial tools and field devices
Mobile energy systems and power carts
Installation Note
Ensure connectors are secure and compatible before powering your system for optimal safety and performance.
