Lithium Cube™ EX6 Portable Power Station - 1000W Solar Generator for Camping, Emergencies & Outdoor Adventures - Fast Charging & Quiet Operation

Description

Lithium Cube EX6
The Lithium Cube EX6 features a sleek functional exterior design intended to protect the internal components and endure the rigors of off-road exploration. Each portion of the Lithium Cube EX6 was thoughtfully planned to allow an intuitive user experience.

Power Output
On the power side, the Lithium Cube EX6 features two 120V AC outlets capable of providing 600 watts of continuous Pure Sine Wave power with Fast Charge and USB-PD ports supplying fast charges to all of your electronic devices. A 12V DC socket keeps your DC appliances running smoothly.

Fast Charging
Recharging the Lithium Cube EX6 is simple with the included AC charging cable. Performance is the name of the game when it comes to recharging; a full battery charge from 0% to 100% can be achieved in under 2 hours through AC. Connect up to 200 watts of solar panels to the built-in MPPT charge controller and have a standalone solar generator when power outlets are nowhere to be found.

Form & Function
The design of the Lithium Cube EX6 makes one thing certain: it was designed for the user. From the handle that folds flat into the lid to the full-color display that tells you everything that is going on, even the rounded edges of the stackable square case, all point to a device that was made to be purely functional (yet retains its exceptional good looks!).

Safety
As with all of our products, your safety is a priority. We have the industry standard protections in-place to protect you and your loved ones: UL Certification on the battery, Over-voltage Protection, Over-charge Protection, Short Circuit Protection, Reverse Polarity, and Overload Protection.

The Lithium Cube EX6 will power your needs for whatever road lies ahead.

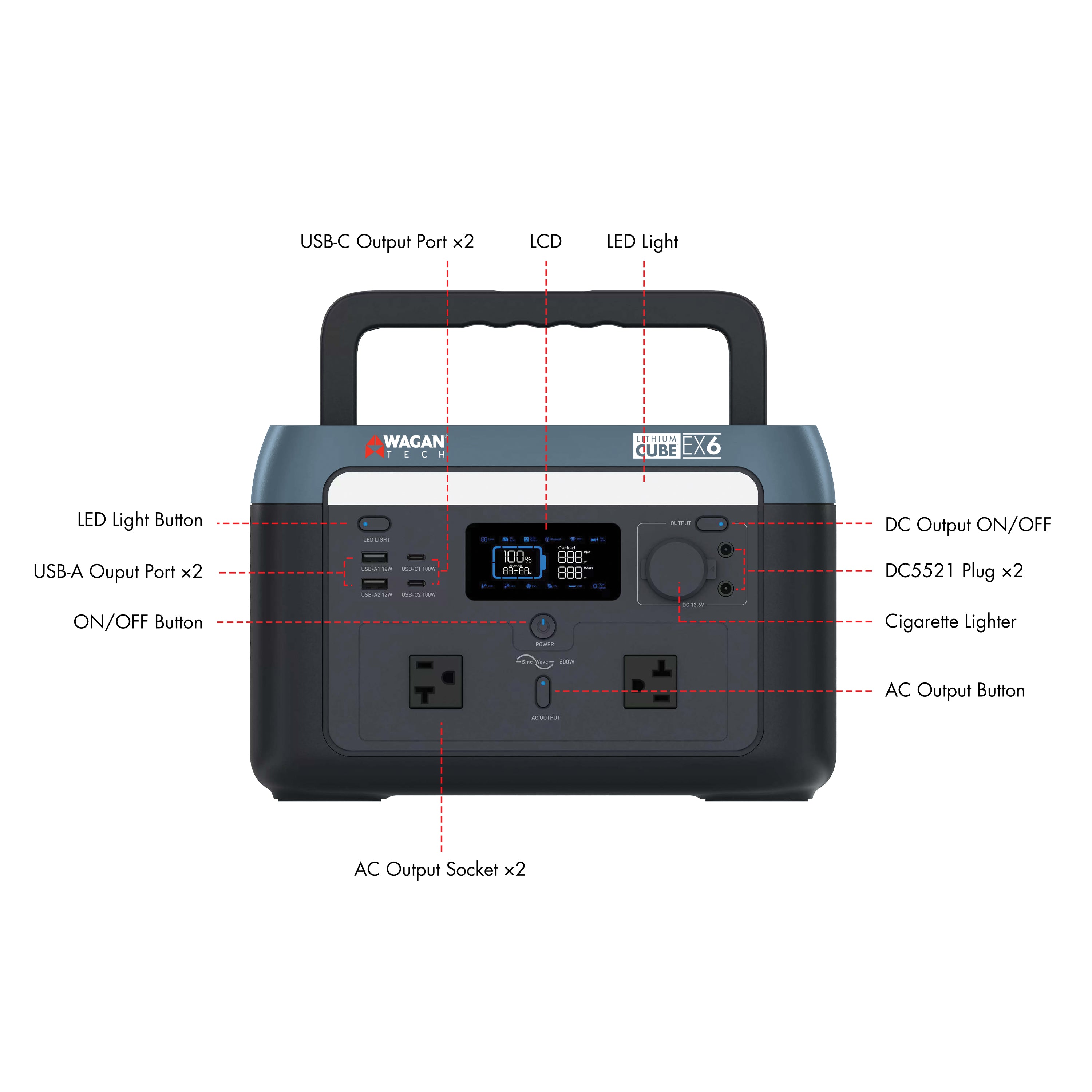

Quick List of Features:

• 600 watt pure sine wave inverter (1,000 watts peak)
• One 12 volt automotive socket for powering DC appliances (up to 10 amps)
• Four USB power ports for charging/operating cell phones and tablets
• DC charging cable (fused)
• A comprehensive display shows charge status and power consumption
• LED light (3 brightness mode and SOS mode)
• Solar charging port connecting panels to the internal solar charge controller
• Flat-fold handle for easy lifting

Specs

Battery

• Lithium Iron Phosphate Battery (LiFeP04)
• 512Wh, 25.6VDC 20Ah

Power Inverter (120V AC) Output

• Waveform: Pure Sine Wave (PSW)
• Output: 100-120V AC
• Continuous Output: 600W
• Peak Surge: 1000W
• Frequency: 60Hz
• Cooling Fan: Thermally Controlled
• AC Outlets: 2
• Over-heat protected: Yes
• Short-circuit protected: Yes
• Over-voltage protected: Yes
• Under-voltage protected: Yes

Solar Charge Controller

• Type: MPPT
• Input: Anderson power-pole
• Input Voltage: 12-20V DC
• Input Current: 10A
• Max Solar Input: 200W

AC Charger

• Input Voltage: 100-120V
• Input Frequency: 50/60Hz
• AC Charger Output: 600W

DC Charger (Input)

• Fuse: 8A
• Length: 5 Feet
• Acceptable Input: AC (via voltage converter), DC, Solar Panels, Wind Turbine, Hydro-electric
• Anderson Connectors: Built-in
• Input Range: 12V
• Input Max Amperage: 8A

DC Socket (Output)

• Regulated 12.0V Socket
• 12VDC Socket Count: 1
• Socket Rated Output: 10A

USB Power Ports

• USB Power Port Count: 4
• USB-C: 2 ports
     - 100W PD  (5V, 9V, 12V, 15V 3A, 20V 5A)

• USB-A (standard USB): 2 ports
     - 12W (2.4A)

Build Specs

• Pass Through Charging: Yes
• Folding Handle
• AC Charger: Included
• DC Charger: Included
• Operating Temperature: 32°F - 104°F (0°C - 40°C)
• Storage Temperature: -4°F - 122°F (-20°C - 50°C)
• Operating Humidity: 10% - 90%
• Storage Humidity: 5% - 95%
• LED Worklight: 60 Lumens
• LED Worklight Modes: High, SOS
• Weight: 15.5 lbs.
• Dimensions (LxWxH): 11.9 x 9 x 7.6 in
• Display: Full Color, Full operational details
• UPC: 08436708835-2
• MFG: EL8835
• Warranty (USA): 2 Years

Certifications & Protections

• UL Certification
• Over-voltage Protection
• Over-charge Protection
• Short circuit Protection
• Reverse Polarity
• Overload Protection

WARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

100W Solar Panel

• Panel Sold Separately
• Power Cable Length: 78"
• Panel Open Dimensions (inches): 46 x 21.3 x 1.2
• Panel Closed Dimensions (inches): 23 x 21.3 x 1.2
• Panel Composition: Monocrystalline, ETFE Matte surface
• Panel Efficiency: 23%
• Max Wattage: 100 Watts
• Solar Controller: No
• Unit Weight: 6.8 lbs.
• Open Circuit Voltage / Voc: 24.1V
• Max Power Voltage / Vmp: 20.5V
• Short Circuit Current / Isc: 5.1A
• Max Power Current / Imp: 4.9A
• Operating Temperature Range: -4 - 140ºF
• Item Number (MPN): EL8214
• UPC: 08436708214-5
• Warranty: 2 years
