Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3620A is a high-performance 36V 20Ah battery built for demanding, space-limited systems. With 720W of output, it powers a range of advanced 36V applications including electric mobility, robotics, and scientific instruments. A lightweight PVC form factor provides installation flexibility, while its integrated PCM ensures protection and efficiency.
Key Features
1. High-Efficiency Output for Demanding Systems
Max Continuous Discharge: 20A
Peak Discharge Current: 40A (5 seconds)
Max Continuous Power: 720 Watts
Perfect for 36V electric vehicles and mobile systems
2. Smart Protection with Built-In PCM
Overcurrent, overvoltage, undervoltage, and short circuit protection
Internal cell balancing and integrated charge control
3. Lightweight and Compact Design
Case: PVC Pack
Dimensions: 9.5 in. × 5.1 in. × 5.8 in. (241 mm × 130 mm × 147 mm)
Weight: 15.8 lbs. (7.2 kg)
Charge Connector: DC Barrel Plug

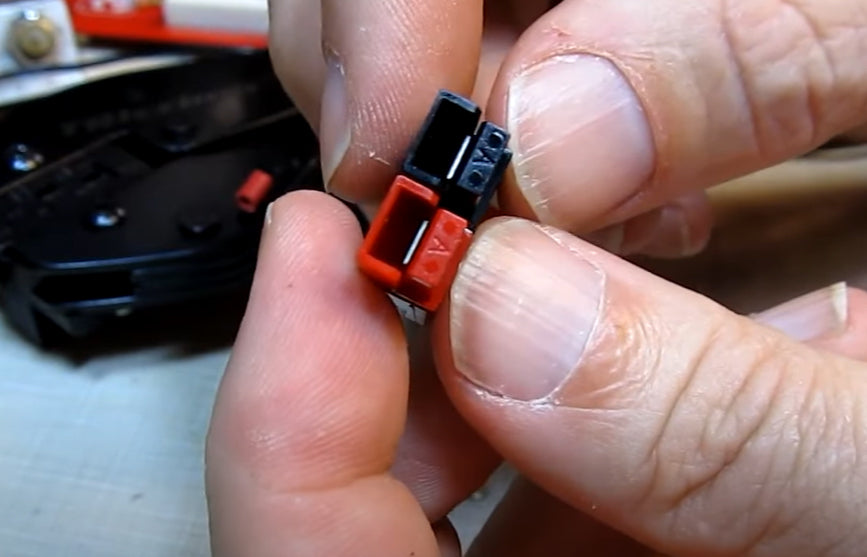

Discharge Connector: Anderson Powerpole (PP45)
4. Charger Compatibility
Model:
Input: 110VAC / 220VAC
Output: 43.8VDC at 4A
Connector: DC Plug
Battery Specifications – BLF-3620A
Advantages
Lightweight and compact for portable applications
2000+ cycle lifespan with deep discharge capability
Maintenance-free and quiet
Safe for sensitive electronics and communications
Best Use Cases
E-bikes, scooters, and other 36V transport systems
Robotics and automation
Mobile science and field equipment
Solar-powered portable electronics
Installation Tip
Ensure terminal connectors are tight and secure before use. Use only LiFePO4-compatible chargers to maintain battery health.
