Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-4820A is a high-performance 48V 20Ah battery designed for higher voltage applications. Ideal for electric vehicles like e-bikes and e-scooters, robotics, and industrial systems, this battery combines a compact footprint with advanced power delivery.
Key Features
1. High Power in a Compact Package
Continuous Discharge: 20A
Peak Discharge: 40A (5 sec)
Power Output: 960 Watts
Size: 10.3 in. × 5.7 in. × 5.7 in.
Weight: 20.9 lbs. (9.5 kg)
2. Integrated Protection and Efficiency
Built-in PCM ensures internal cell balancing
Full protection from overcurrent, over/under voltage, and short circuit
Integrated charge circuitry
No EMI/RFI – completely silent operation
3. Charging Specifications

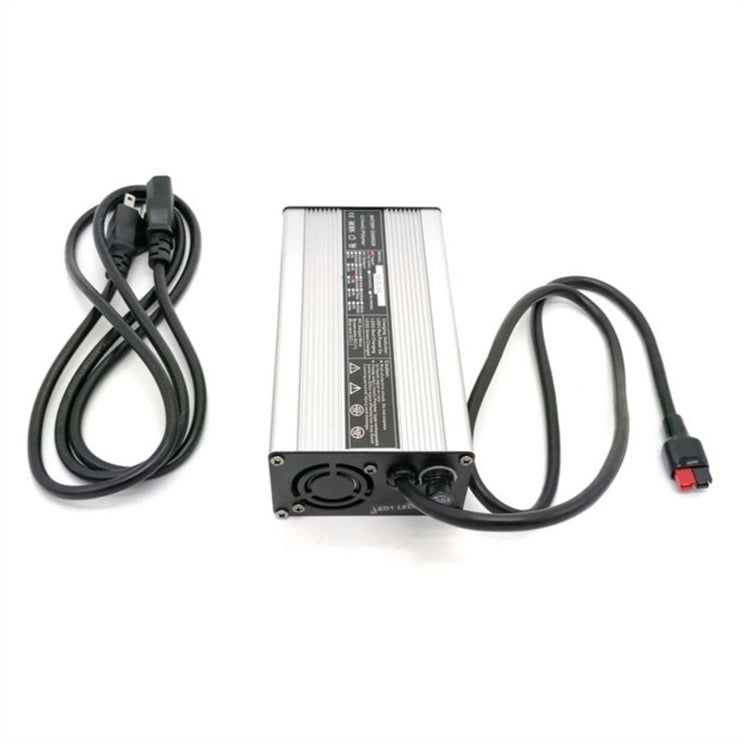

Compatible Charger Output: 58.4VDC at 4A
Connector: Anderson Powerpole PP45
Model:
Input Voltage: 110VAC/220VAC
BLF-4820A Battery Specifications
Voltage: 48V
Capacity: 20Ah
Case Type: PVC
Charge Connector: Anderson Powerpole PP45
Discharge Connector: Anderson Powerpole SB50
Max Continuous Power: 960 Watts
