Product Overview

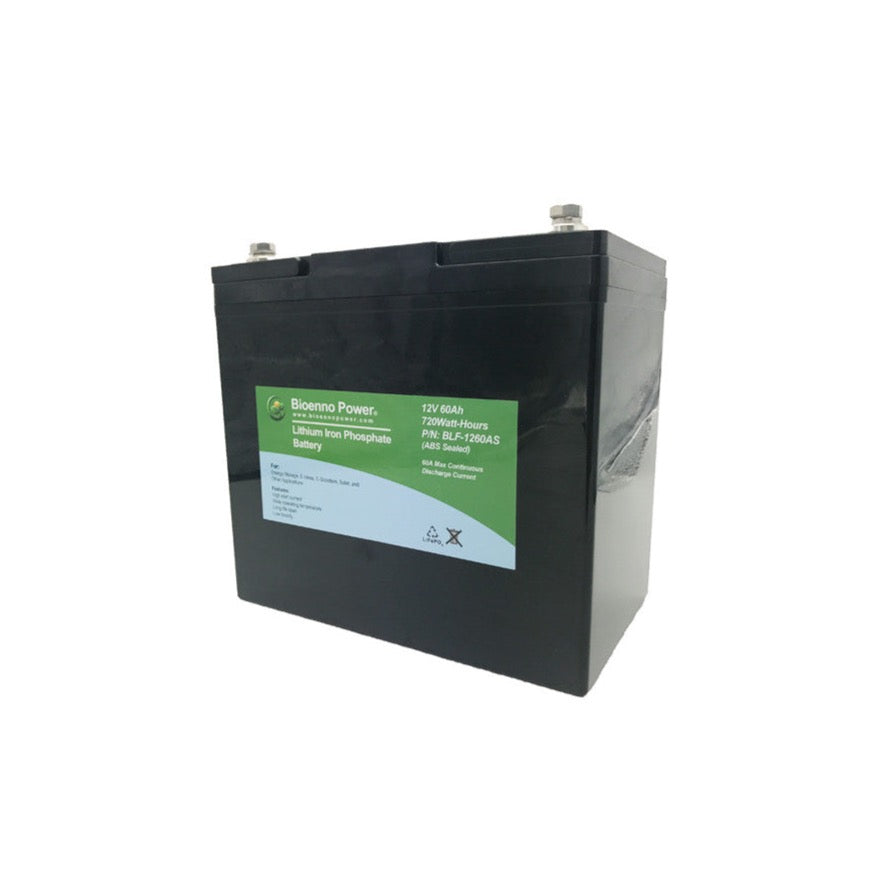

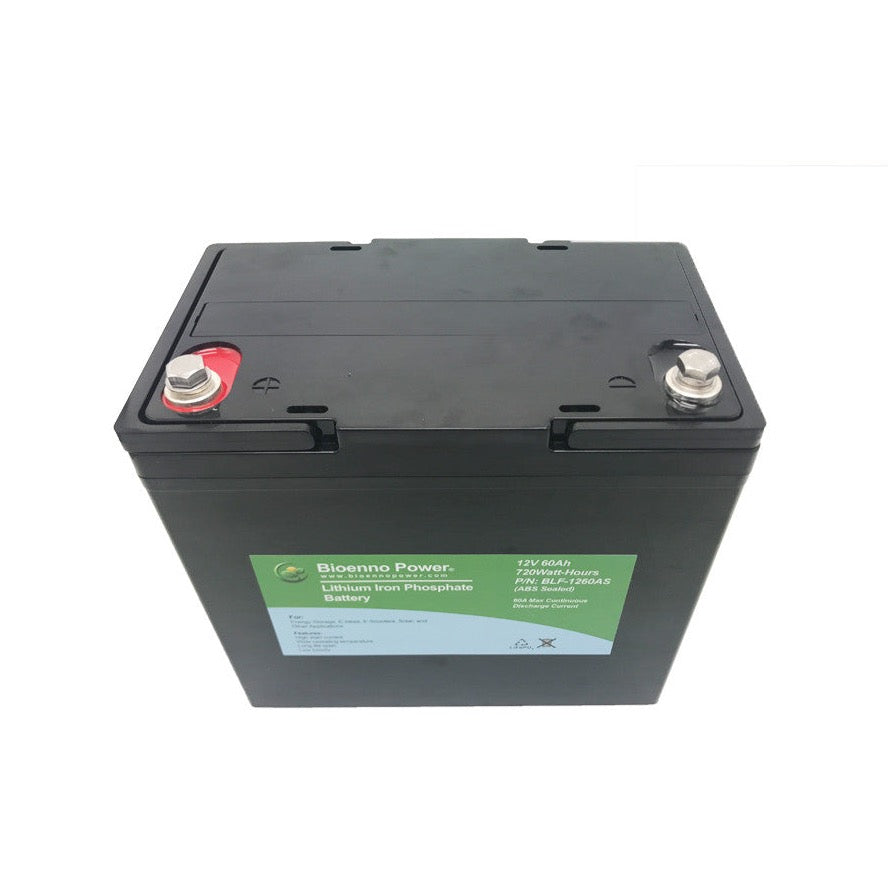

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1260AS is a compact, high-capacity 12V 60Ah battery engineered for high-load, long-runtime applications. With its sealed ABS case and built-in PCM protection, this model delivers consistent, EMI-free power for avionics, e-bikes, solar systems, and communication devices.
Key Features of the 12V 60Ah Lithium Battery
1. High Discharge Capability
Max Continuous Discharge: 60A
Peak Discharge Current: 120A (5 seconds)
Max Power Output: 720 Watts (12V × 60A)
2. Integrated PCM Protection
Balances internal cells and protects against overcurrent, overvoltage, undervoltage, and short circuiting.
Includes integrated charging control for safe and consistent charging behavior.
3. Durable ABS Housing
Fully sealed ABS case supports rugged use across field and mobile environments.
Silent operation—no EMI or RFI, making it ideal for avionics and sensitive electronics.
4. Charger Compatibility
Battery Specifications – BLF-1260AS
Voltage: 12V
Capacity: 60Ah
Max Output Power: 720 Watts
Case Type: ABS Sealed
Charge/Discharge Connector: Screw Terminal
Dimensions: 8.9 in. × 5.4 in. × 8.1 in. (228 mm × 137 mm × 204 mm)
Weight: 17.4 lbs. (7.9 kg)
Benefits
Power-Dense Design: Delivers high current and runtime in a manageable size.
Reliable Energy Source: Supports critical applications with high discharge needs.
Extended Cycle Life: Engineered for 2,000+ charge cycles under standard conditions.
Ideal Applications
Sailplane and avionics power systems
E-bikes, scooters, and mobility platforms
Portable solar power and energy storage
Communication equipment and AV setups
Field operations and off-grid electronics
Installation Note
Before use, ensure all screw terminals are wrench-tightened for secure electrical contact.
