THIS ITEM IS CURRENTLY OUT OF STOCK AND ON BACK ORDER. ESTIMATED RESTOCK IS LATE SUMMER. ORDERS PLACED NOW WILL BE FILLED WHEN THE ITEM IS BACK IN STOCK.
AR102 Telescope
The Explore Scientific AR Air-Spaced Doublet Series telescopes are classic air-spaced, crown-and-flint, doublet achromatic f/6.5 refractors with a superior-class optical figure. Whether you choose the AR102 (4"), AR127 (5") or AR152 (6") model, you will be impressed by the stunning images revealed to you at the eyepiece, and all at a small fraction of the price you’d pay for a comparably sized apochromat refractor.
Designed to handle the rigors of public star parties and educational outreach, the Explore Scientific AR Series telescopes come with heavy-duty, high quality components, including a 2-inch Two-Speed Crayford Focuser with Compression , a 99% Reflective Dielectric-Coated 2-inch Diagonal Mirror with 1.25-inch Eyepiece Adapter, an 8X50 non-illuminated straight-thru finderscope and quick release bracket, and a cradle ring assembly with 45mm wide dovetail plate (Vixen style). Just add a few eyepieces and the alt-azimuth or equatorial mount of your choice and you’ll be ready to discover the Universe!
Interferometic data on your newly purchased and registered Explore achromatic refractor is available upon request after 120 days of ownership. Please contact Customer Service for more information.
EXOS2 with PMC-Eight
The award winning Explore Scientific EXOS2-GT PMC-Eight Equatorial Mount with its 28 lb instrument payload capacity for astrophotography is an excellent choice for many of Explore Scientific's telescopes as well for the visual astronomer where the instrument payload capacity can be pushed much more, providing a solid very portable solution for those who want to use a larger telescope that would normally require a much larger equatorial platform.
"This just makes me even happier with my purchase of a EXOS2-GT, I've come nowhere near capacity with mine. But this is just a very reassuring example of the quality of Explore Scientific products, and another reason why I will continue to be a customer!"
-James Hubbard
We often get calls about the “load capacity” of our mounts. For telescope tracking mounts there are generally two different specs: instrument payload capacity for astrophotography, and instrument payload capacity for visual use.
Payload capacity ratings for visual are normally much higher than for astrophotography because with added weight beyond a certain point, there is an increase in tracking error (e.g. periodic error, etc.). For the EXOS2 GT PMC-Eight the instrument payload capacity for astrophotography is 28lbs + counterweights. And for visual use, the instrument payload capacity is 40 lbs + counterweights.
Note that we chose stepper motors for the PMC-Eight instead of DC servo motors because they can handle incredible strain and not damage mechanical nor electronic components.
Explore Scientific's PMC-Eight GOTO system can be controlled wirelessly or wired with a tablet or PC, with Windows 8.1 or 10, Android, Amazon Fire, or iOS, with a free app called ExploreStars. Tablet must be purchased separately.
The ExploreStars App controls any PMC-Eight mount by means of an intuitive graphical interface. Among other features ExploreStars offers both 2-star and 3-star alignment procedures, educational information and images of the more popular celestial objects, and a choice of over 80,000 objects for viewing.
The ExploreStars object database encompasses a wide range of celestial objects including those in the Solar System, the Messier Catalog, the New General Catalog, and the Index Catalog, as well as a collection of over 70,000 stars. The Celestial Database also includes educational material and images for many of the more popular objects. This database is available as a separate updatable component of the ExploreStars software system. It can expand over time and any ExploreStars implementation can easily be updated by downloading a fresh copy of the Celestial Database. In fact, the educational material and images within the database can be customized by each individual user using Microsoft Access.
In addition to ExploreStars, we provide an ASCOM interface that will allow a huge range of star map software to control the PMC-Eight. Here are just are some examples that are currently available: ACP; APT; AST / ATC & Ricerca (Omega Lab); AstroArt; AstroMB; Cartes du Ciel / Sky Chart; CCD AutoPilot; DeepSky; Deepsky Planner; DFM Engineering; Earth Centered Universe Pro; EasySky; Eye and Telescope; Project Pluto; Hallo Northern Sky; Maxim DL; MaxPoint; PinPoint Astrometric; Prism; Sequence Generator Pro; Sidereal Technology; The Sky; SkyMap Software; SkyTools 3; Star Atlas PRO; Sky Observer; StarryNight; Stellarium; and Virtual Moon Atlas.

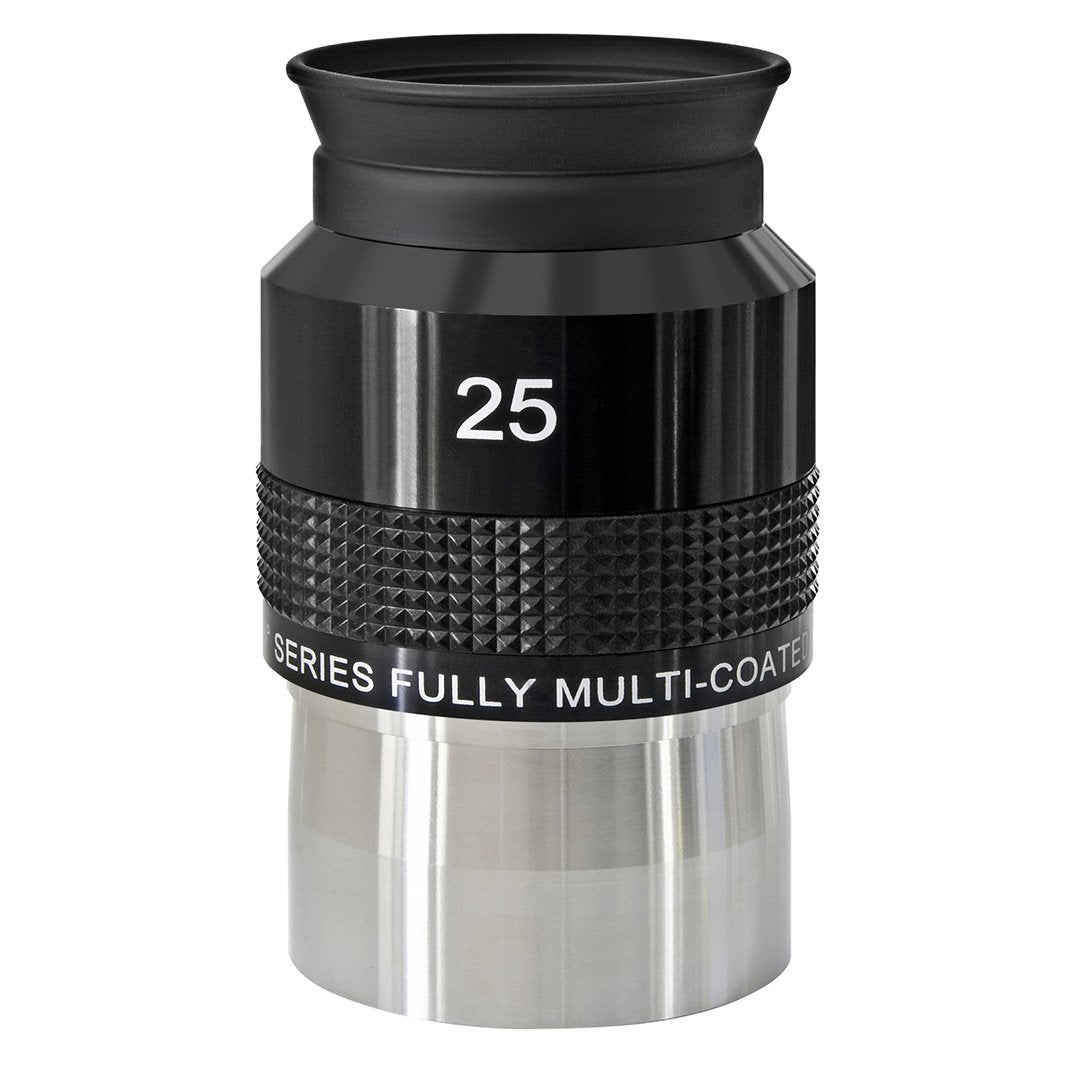

70° Eyepiece 25MM
The new eyepiece design represent a major advance compared to the original Plössl and Super-Plössl design. The five element design features tack sharp optical performance which delivers a improvement in corrections for chromatic aberration and edge-sharpness compared to traditional plössl. The observing comfort is also much better with this eyepieces than with the conventional Plössl design. A good choice for telescopes with relaxed focal ratios at an unbeatable price point.
Specs
| Item Number | DAR102065–01 |
| Focal Length | 663mm |
| Focal Ratio | f/6.5 |
| Limiting Magnitude | 12.5 |
| Resolution | 1.14 arcsec |
| Tube Length w/ Dew Shield | 25.5"; 698mm |
| Diameter | 101mm |
| Weight | 11.5 lbs; 5.2 kg |
| Dovetail Plate | 45mm Wide (Vixen-Style) |
| Item Number | ES-EXOS2GTPMCT3–00 |
| Mount | EXOS2GT with PMC-Eight GoTo Mount payload capacity: 28 lbs of instrument weight for astrophotography; 40 lbs instrument weight for visual. Total weight without counterweights 30 lbs. Head weight 13.4 lbs. Tripod weight 13 lbs. Includes (2) 11.25 lb counterweight and AC adapter. Note: Carbon Fiber Telescopes may need a lighter counterweight. If you need a lighter counterweight, please contact customer service. |
| Construction | Stainless Steel Tripod with bubble level and 2" stainless steel legs. Extends from 26.8" to 42.5". |
| Controls | Belt-Driven Stepper motors with computerized GoTo features using ExploreStars with a Windows 8.1 or higher based PC, laptop or tablet or ASCOM Compatible Software and ES ASCOM driver. |
| Item Number | EP7025-00 |
| Focal Length | 25mm |
| Weight | 333 grams |
| Barrel Size/Type | 2" |
| Field Stop Diameter | 50.8mm |
| Eyecup | Flip-Down Style Soft Silicone Rubber |
| Materials | Optical Glass; Aluminum; Steel; Silicone Rubber |
Warranty
Limited Warranty is one year, which converts to the Explore STAR Transferable Extended Life of the Product Warranty when product is registered within 60 days of purchase. to register.
