Product Overview

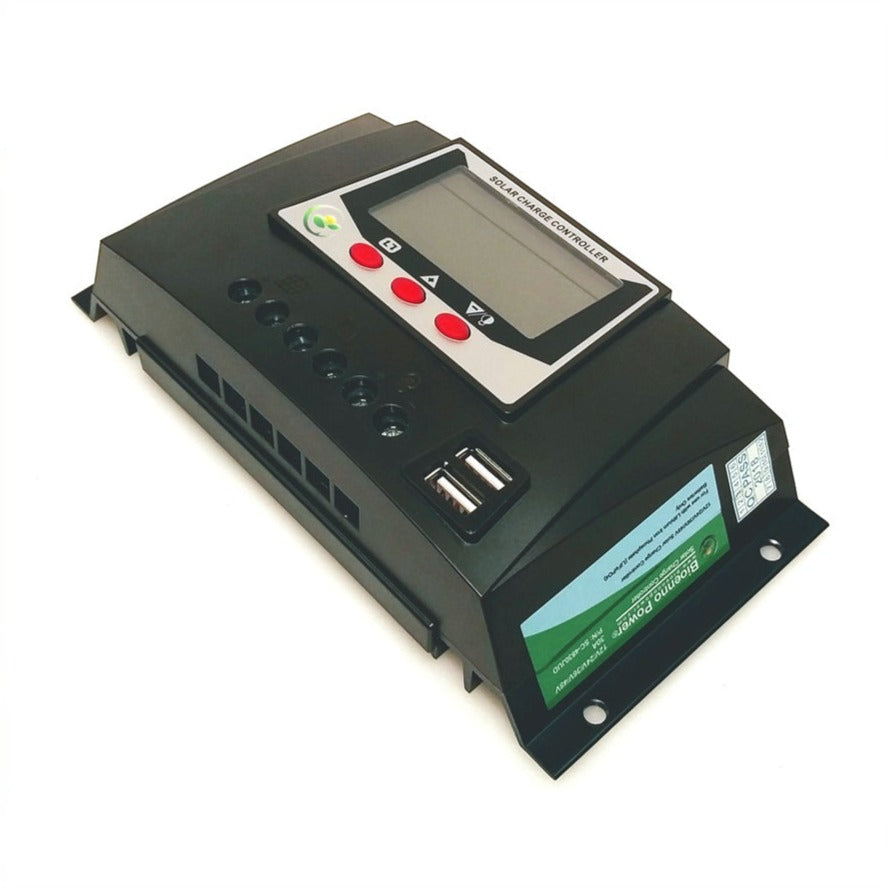

The Bioenno Power 12V/24V/36V/48V, 30A Solar Charge Controller (Model SC-4830JUD) is a versatile, intelligent controller designed to manage and optimize solar power delivery to LiFePO4, AGM, and SLA batteries. With support for system voltages up to 48V and a rated current of 30A, it’s ideal for multi-voltage solar applications in off-grid and mobile power systems. This controller is equipped with a digital LCD display and integrates CC/CV charging technology for maximum efficiency and battery protection.
Key Features
1. Broad Voltage Compatibility
Supports 12V, 24V, 36V, and 48V battery systems (auto-detection)
Accepts solar panel input voltages from 17V to 50V (open circuit)
Compatible with LiFePO4, Li-ion, AGM, and SLA battery types
2. Smart Charge and Load Management
Output Voltage: Regulated to match battery system (12V–48V)
Charge Current: Up to 30A
Load Current: Up to 30A
Charging Mode: Constant Current / Constant Voltage (CC/CV)
USB Output: Dual 5VDC/1A ports for powering accessories
3. Intelligent Display and Safety
Integrated LCD screen for voltage, charge status, and system diagnostics
Regulates both battery charging and power to connected loads
Designed to prevent direct solar panel-to-load/battery connection
4. Efficient and Compact
Dimensions: 7.3 in. x 3.66 in. x 2.08 in. (186 mm x 93 mm x 53 mm)
Weight: 0.84 lbs. (0.38 kg)
No Load Loss: <13 mA
Operating Temperature: -31°F to 131°F (-30°C to 50°C)
Important Notes
This unit does not boost voltage but regulates higher input voltages down to proper battery charge levels.
A solar charge controller is required in any system using solar panels with batteries or loads.
Do not connect solar panels directly to batteries or loads without this controller.
